Vertical chemical pumpHD-RE (Wet pit type)
HD-RET (Dry pit type)

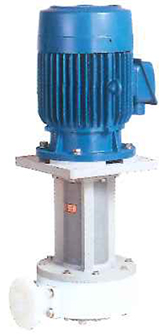

  • HD-RE-P

    HD-RE-P

  • HD-RE-W

    HD-RE-W

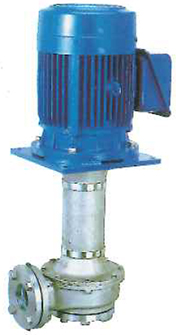

  • HD-RE-32

    HD-RE-32

Pump variations

Model Main material Max temp.
HD-RE-P PVC+HT-PVC 55℃
HD-RE-W UPE+PVC 55℃
HD-RE-32 SCS14 80℃
HD-RE-PP PP 75℃
HD-RE-4F PTFE 90℃

Features

Non-metal non-seal

Chemical resistance

Various kinds of material(PVC/U-PE/PP/SCS14)
to fit for different chemical liquid.

Installation records

HD-RE-P scrubber cleaning device
PCB manufacturing device
(developing, etching, stripping)
HD-RE-W PCB:jet scrubber, transfer slurry
HD-RE-32 PCB : desmear

Easy maintenance

Possible to inspect pump easily without removing pipes.

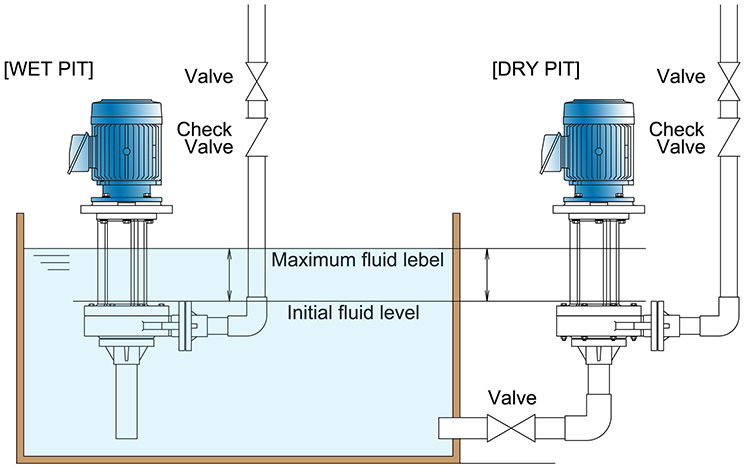

Pump installation example

Pump installation example

Operating range : standby/stopping (the highest level)〜 in operation (the lowest level)
*In case of using suction pipe,
don't restart pump until water level rise to the highest lever
