Stainless steel pump
-

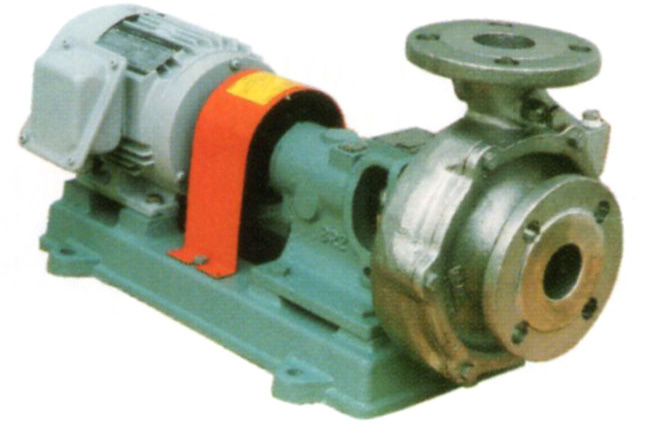

FM (4P motor)
-

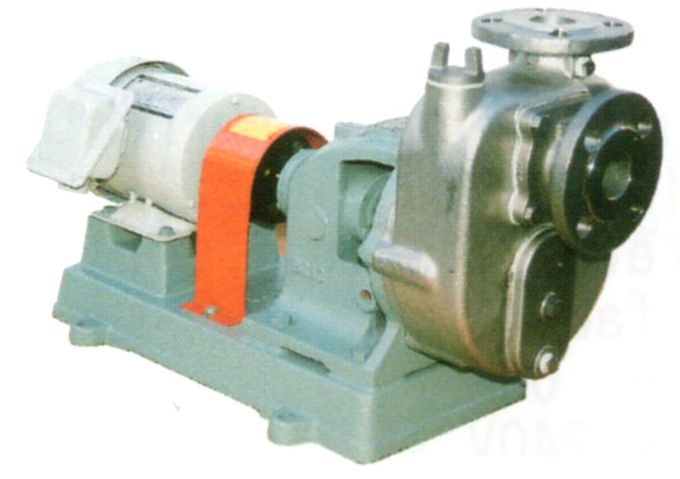

FMS (4P motor)
-
![[JIMS 16bar standard pump]](../img/products/stainless/img03.jpg)

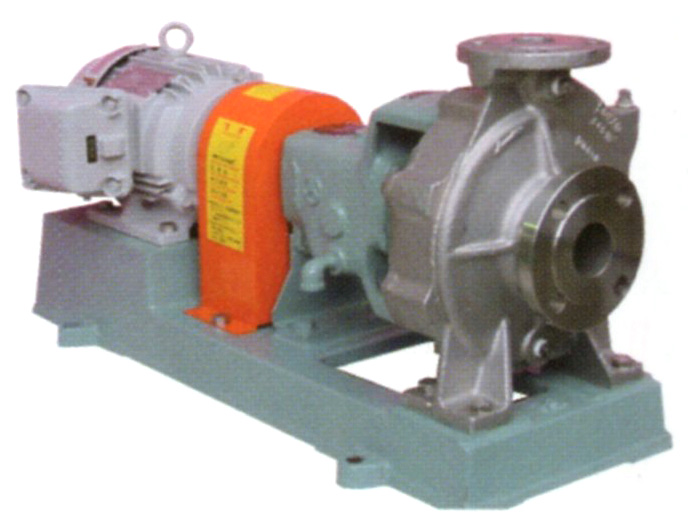

[JIMS 16bar standard pump]
Features
Chemical resistance
Stainless steel pumps are made of SUS304, SUS316, SUS316L Carpenter, or Hastelloy.
There are many kinds of Mechanical seal and we choose the suitable one according to using liquid.
Pump variation
Stainless steel pump series are mainly centrifugal pumps.
| Pump model | Bore [in × out] (mm) | Total head (m) | Capacity (L/min) |
|---|---|---|---|
| Non self-priming: | |||
| FM (4P) | 25 × 25 ~ 200 × 200 | 5 ~ 47m | 40 ~ 5600L/min |
| FX (4P) 2FX/2FXH (2P) |
40 × 32 ~ 125 × 100 | 7 ~ 110m | 80 ~ 2000L/min |
| 2FH (2P) | 25 × 25 ~ 80 × 80 | 7 ~ 50m | 40 ~ 900L/min |
| [JlMS16bar] FIC/FlE (4P) 2FlC 2FlCH (2P) 2FlDH |
40 × 32 ~ 150 × 125 | 8 ~ 97m | 50 ~ 3500L/min |
| [Motor pump] 2FFH (2P) |
40 × 40 ~ 80 × 80 | 7 ~ 53m | 80 ~ 1000L/min |
| SeIf-priming: | |||
| FMS/FHS (4P) | 25 × 25 ~ 125 × 125 | 3 ~ 23m | 40 ~ 2000L/min |
| 2FGS/2FHS (2P) | 25 × 25 ~ 65 × 65 | 4.5 ~ 37m | 40 ~ 500L/min |
| 2FlS(2P) | 50 × 50 ~ 65 × 65 | 30 ~ 60m | 150 ~ 500L/min |
