Vertical chemical pumpSelf priming typeHD-SFV

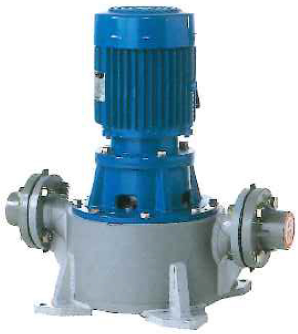

  • HD-SFV

    HD-SFV

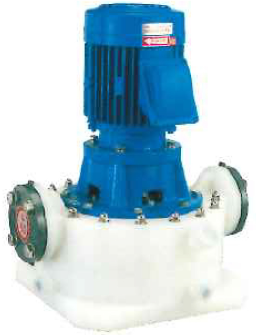

  • HD-SFV-P

    HD-SFV-P

  • HD-SFV-PP

    HD-SFV-PP

Pump variations

Model Main material Max temp.
HD-SFV FRP+HT-PVC 80℃
HD-SFV-P PVC+HT-PVC 55℃
HD-SFV-H (high press. type) FRP+HT-PVC 80℃
HD-SFV-PH (high press. type) PVC+HT-PVC 55℃
HD-SFV-PP PP 75℃

Features

HKS seal equipment

Pump can show high seal performance in operation and stopping.

Chemical resistance

Various kinds of material (PVC/FRP/U-PE/PP)
to fit for different chemical liquid.

Installation records

HD-SFV, HD-SFV-H waste water treatment (Acid/Acid&Alkali mix.)
transfer chemical liquid
HD-SFV-P, HD-SFV-PH waste water treatment (Acid/Alkali)
transfer chemical liquid
HD-SFV-PP electroless Au/Cu plating

Easy maintenance

Possible to inspect pump easily without removing pipes.

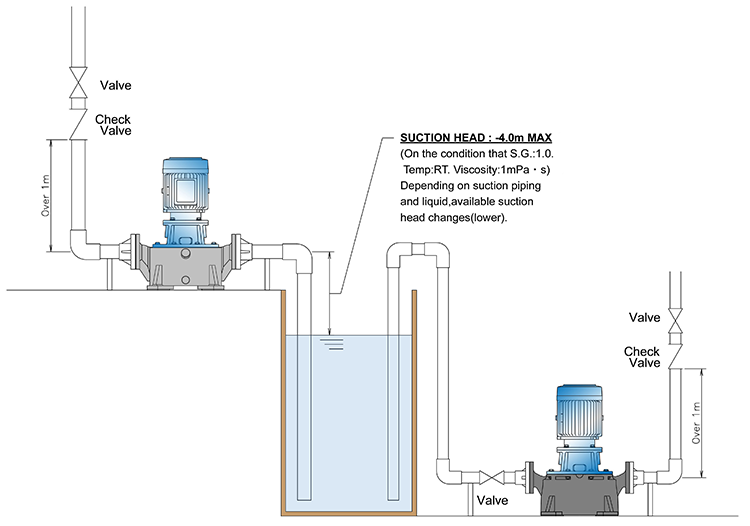

Pump installation example

Pump installation example

OptionPump protector

  • Thermosensitive type

[Thermosensitive type]

Features

  • For HD-SFV and HD-TFV
  • Detection by liquid temp. in the pump casing.
  • It can Protect pumps from thermal deformation of pump parts by the following reasons. running with closed valves, blocked pipe or strainer and so on.
  • emprature set:
    FRP casing 75℃
    PVC casing 50℃
  • Alarm will be sent easily by using relay.
